Food Paper Rewinder Machine

Kraft Paper LDPE Roll Washcloth Rewinder

PPD-KPWR1500

Kfaft paper LDPE roll washchoth rewinder is ideal for rewinding of big diameter washcloth roll to be small diameter roll.
It adopts English and Chinese two languages exchange,mangnetic powder brake and clutch for tension controlling of the jumbo roll.
When the roll reach the setting length,the machine will stop and the pneumatic knife will cut off the finished roll.
It is high precision to the length setting, rewinding result neatly, easy operation, smooth appearance,very stable production with user friendly.
Machine can do both coreless roll and with paper core.

MATERIALS FOR CONVERTING:

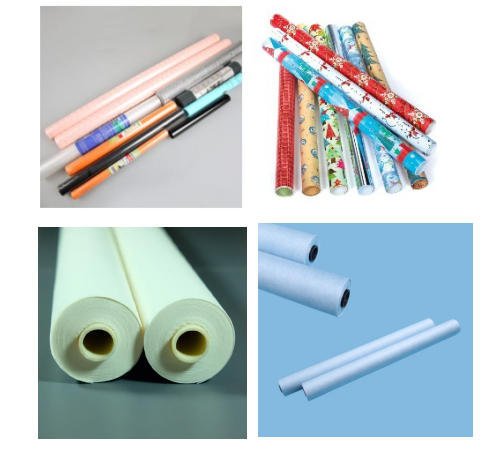

Washcloth roll Kraft paper ,LDPE Roll,Window Film,Wallpaper,Book cover,Table cover,Gift wrap paper,Food craft packing paper etc.

Features:
1. The whole machine is controlled by a PLC and driven by a synchronous servo, making it easy to operate.
2. Automatic meter counting, automatic roll diameter calculation and display.
3. Smooth cuts and neat rewinding ends.
4. The flying cutter uses a rodless cylinder for cross-cutting; after the set meter is reached, the flying cutter automatically cross-cuts and pre-feeds the roll.

Main Data:

Name:Kraft Paper LDPE Roll Washcloth Rewinder

Model:PPD-KPWR1500

Jumbo roll width:max1500mm

Jumbo roll weight:50-60kg

Jumbo roll OD:max800mm

Jumbo roll ID:3inch(76mm)

Rewinding roll width:1500mm

Rewinding roll length:8,12,16m

Rewinding roll OD:max180mm

Production speed:10-180m/min

Rewinding roll ID:25mm,35mm,40mm

Total power:3kw

Voltage:380V,50Hz,3PH
