Fully Automatic Foil Tray Production Machine

PPD-A45T

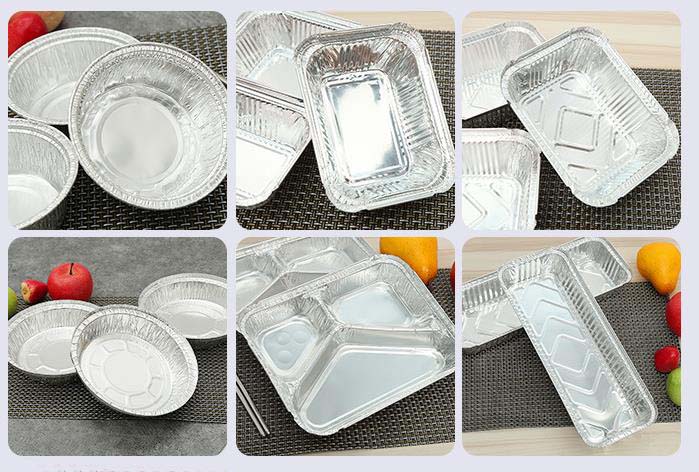

Fully automatic foil tray production machine is the automatic production line of manufacturing of aluminium foil container,aluminium foil tray,aluminium foil plates,aluminium foil lunch box,aluminium foil dish etc aluminium foil products.

The complete production line includes:

♦ Feeder machine

♦ Punching machine

♦ Mould

♦ Automatic stacker

♦ Scrap collecting device & Aluminium foil scrap baler (For option)

1.Feeder Machine

Model:PPD-45T

Nominal pressure 450KN

Slide block stroke 210mm

Slide  stroke per minutes 50-70pcs/min

Maximum die set height 400mm

Slide bottom size 430X340mm

Stemhole size Φ60mm* 65mm

Bolster surface size 900*780mm

Total power 5.5KW

Weight 45O0KG

Weight of machine2000*1300*900

2.Punching Machine

Pressure: 450KN

Body work plate hole dimension: 300*300mm

Stroke time: 60-100 times/min (3600-6000 pcs /hour for one cavity mould)

Stroke height: 180mm

Work plate thickness: 50mm 100mm

Max. die Installation height: 390mm

Dimension of slide block bottom, size of handle hole:320*145mm, ¢ 18

The distance from the center of slice to the body: 340 mm

The height adjustment for die: 80 mm

Die handle hole dimension: ¢ 50*60 mm

Work plate dimension: 660*1000 mm

Dimension: 1915*1280*2500mm (L*W*H)

Motor capacity:5.5KW

Net weight: 4800kg

Voltage  380v 50Hz 3ph

3.Mould

Type：Punching Mould

Cavity：Single cavity，multi cavity （Two，Three，Four as customized）

Shape :Round,Square,Heart or as customized.

4.Auto Stacker

Container shape:Rectangle

Container dimension(L*W ):120*120--300*300mm

Lane:Single lane /double lanes or others

Max. Speed:70pcs/min

Motor:0.4KW

Servo Motor:0.2KW

Voltage:380V/50Hz

Stacking number:0-100pcs

Max. Stack height:450mm

Weight:250KG

Machine dimension:2500*1500*1400mm
